Compact Form Iris Recognition Module High Resolution Imaging

Name: Compact Form Iris Recognition Module High Resolution Imaging
Brand: HOMSH
Price: 1 USD

Brand Name : HOMSH

Model Number : MI30-1000

Certification : ISO9001

Place of Origin : China

Payment Terms : T/T

Delivery Time : 5-8 work day

MOQ : 1

Price : Negotiated

Model : MI30-1000

Product Functions : Iris Capture, Iris Recognition

Connection : I2C

Power : 3.2W

Product Dimensions (L x W x H) : 68 x 26 x 23mm

Storage Capacity : 1000 people (200 templates)

Working Distance : 350mm~550mm

Recognition Mode : Dual-eye / Single-eye

Imaging Wavelength : 850nm

Operating Illuminance : 0~6000 Lux

Contact Now

Iris Recognition Device: Broad Recognition Range, High-Resolution Imaging, Compact Form, Ideal for Secure Access Control

Description

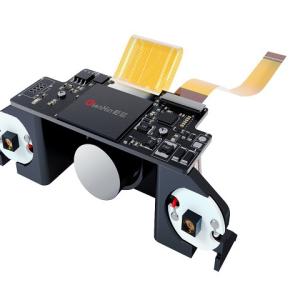

The MI30 iris module features a compact design and utilizes I2C interface for iris encoding and recognition. This module is built upon the proprietary Phaseiris™3.0 iris recognition technology developed by IrisTech, allowing reliable recognition within a range of 350mm to 550mm. The MI30 module boasts comprehensive functionality, supporting both iris capture and matching capabilities, and it has local storage capacity for information of up to 1000 individuals (with 2000 iris templates). Its compact form factor (dimensions: L68 x W26 x H23mm) and straightforward integration make it an ideal choice for various smart terminal devices such as intelligent door locks, smart lockers, access control systems, and more.

Functional characteristics

The module employs the third-generation hardware core algorithm Phaseiris™ iris recognition technology, offering a more accurate, fast, and secure iris capture and matching experience.
With a False Rejection Rate (FRR) of 10^-3 and a False Acceptance Rate (FAR) of 10^-7
The module is equipped with a customized high-resolution lens component, perfectly presenting iris details.
It boasts an extensive recognition range from 350mm to 550mm.
Supports parallel image output at a resolution of 320x180.
Locally stores iris templates for up to 1000 individuals.
The module is compact in size, easy to integrate, and suitable for various complex application scenarios.
It supports I2C interface and provides a corresponding SDK development kit, facilitating simple and rapid development for users.

Specification parameters

Specification	Value
Model	MI30-1000
Product Functions	Iris Capture, Iris Recognition
Connection	I2C
Power	3.2W
Product Dimensions (L x W x H)	68 x 26 x 23mm
Storage Capacity	1000 users (200 templates)
Working Distance	350mm ~ 550mm
Recognition Mode	Dual-eye / Single-eye
Imaging Wavelength	850nm
Operating Illuminance	0 ~ 6000 Lux
Operating Temperature	-10°C to 55°C

Operating Humidity	0 ~ 93% RH

Performance Parameter	Value
Spatial Resolution	> 4.0 lp/mm / > 16 Pixel/mm
Image Resolution	640 x 480
Pixel Depth	8 bits/pixel
Image Frame Rate	25 frames/s
Encoding Speed (images/s)	20
Matching Speed (templates/s)	2000

Accuracy	FAR 10^-7, FRR 10^-3

Compliance Standards
Infrared Safety Standard	ANSI RP-27.1-96 (USA), IEC/EN62471 (EU)
Iris Image Standard	GB/T 33767.6-2018 (China)
Iris Algorithm Performance	GB/T20979-2019 (China)

Module application

The module is widely used in iris lock, iris box cabinet, iris access control system, iris attendance system, system encryption and identity authentication login and other devices.
